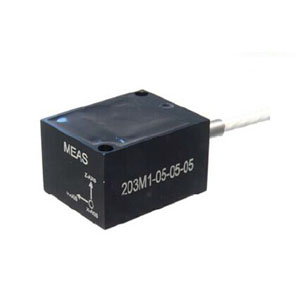

The Model 203 is a low noise triaxial accelerometer offering both static and dynamic response. The accelerometer is packaged in an anodized aluminum housing with an integral cable. It is offered
in ranges from ±2g to ±100g. Featuring gas damped MEMS sensing elements, the model 203 provides a flat frequency response to 100Hz over an operating temperature range of -40°C to +125°C.
MEMS Triaxial Accelerometer Temperature Calibrated
Signal Conditioned Output
Low Cost, Low Noise

FEATURES
• Low Noise, High Signal-to-Noise
• Three Independent Circuits
• Low Current Consumption
• Ranges: ±2g to ±100g
• DC to 100Hz Frequency Response
• High Over-Range Protection
• Temperature Compensation

APPLICATIONS
• Transportation Measurements
• Vibration & Shock Monitoring
• Road Vehicle Testing
• Low Frequency Applications
• Motion Analysis
