LE-LUSERIES

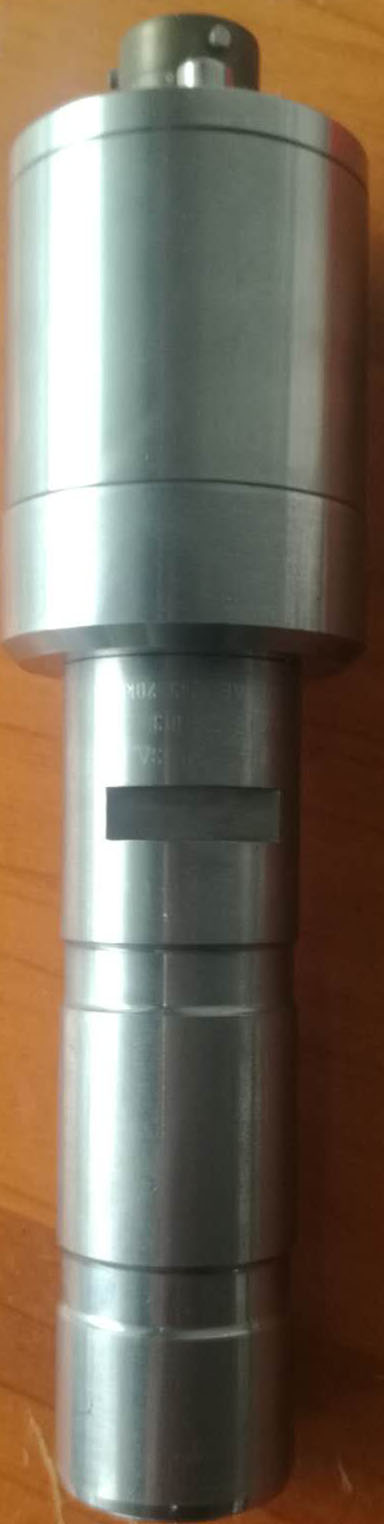

Magtrol offers a wide range of Load-Force-Weight Transducers with optional integrated electronics or Load
Monitoring Units (LMU) with B.I.T.E. functions creating an ideal measurement system which continuously checks
for overloads and short circuits. Idealy for use on Safety Applications according to ECE-R10, ISO 13849-1 : CAT4 &
PLe and IEC 62061 : SIL3 (LE 6XX SERIES); ISO 13849-1 : CAT2 & PLd and IEC 62061 : SIL2 (LE 4XX SERIES)

FEATURES
▪ Temperature-compensated transducers with strain
gauges in full-bridge configuration. On request, available
with double bridge redundant.
▪ Available in several standard ranges
from 2.5 kN to 1250 kN (0.28 tf to 140.5 tf).
▪ Electronics for transmission over great distances:
· 2 wires (LE 210) 4-20 mA
· 3 wires (LE 410) 4-20 mA
· 4 wires (LU 210) 0-10 V
· 6 wires (LE 610) available with dual channels 4-20 mA
▪ Built-in test equipment (B.I.T.E.)
included on LE 410 series & LE 610 series.
▪ Complies with Safety Standards
ISO 13849-1 and IEC 62061.
▪ EMC execution for reliable trouble-free operation.
▪ Rugged design corresponding to the quality
characteristics of LB 210 series.
▪ Insensitive to external mechanical and chemical effects.
▪ Ideal for use in hostile environments.
▪ Simple installation for cost-saving solutions to
construction problems.
▪ Calibrated Output: 0–10 VDC (LU); 4–20 mA (LE).
